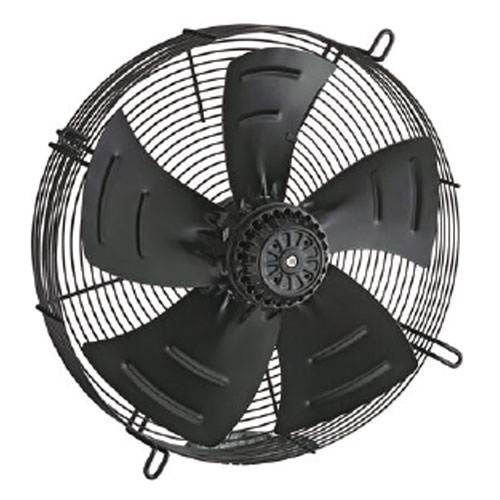

Axial Cooling Fans
It is a ventilation fan model that has blower and absorption features. It does not require maintenance for a long time. It has the advantage of high performance and low noise level. It is used in many industrial areas such as refrigeration machines, residential, industrial areas, cold stores, cooling towers, commercial areas, laboratories.
Ürünü Paylaş
| Axial Cooling Fans | |||||||||||
| Model | Voltage V | Frequency Hz | Input Power W | Current A | Capacitor | Speed d/dak | Air m3/h | Sound dB(A) | Yal. Sın. İz.KI. | K.Sın. IP | Weight Kg |
| SF-4M 250 B | 230 | 50/60 | 50/60 | 0,22/0,26 | 2 | 1400/1670 | 1000/1190 | 44 | F | 54 | 2,5 |
| SF-4M 300 B | 230 | 50/60 | 72/87 | 0,32/0,38 | 2,5 | 1300/1450 | 1700/1900 | 50 | F | 54 | 4 |
| SFX-4M 300 B | 230 | 50/60 | 100/120 | 05/0,54 | 3,5 | 1450/1710 | 1900/2240 | 50 | F | 54 | 4 |
| SF-4M 350 B | 230 | 50/60 | 165/195 | 0,75/0,85 | 4 | 1380/1545 | 3300/3700 | 55 | F | 54 | 4,7 |
| SF-4M 400 B | 230 | 50/60 | 160/220 | 0,75/1,1 | 5 | 1400/1650 | 4000/4700 | 58 | F | 54 | 6,1 |
| SF-4M 450 B | 230 | 50/60 | 245/355 | 1,2/1,6 | 8 | 1400/1600 | 5700/6500 | 63 | F | 54 | 6,9 |
| SFX-6M 450 B | 230 | 50/60 | 165/220 | 0,75/0,95 | 4 | 910/1025 | 4575/5225 | 55 | F | 54 | 6,9 |
| SF-4M 500 B | 230 | 50/60 | 450/600 | 1,98/2,65 | 10 | 1300/1450 | 6900/7700 | 65 | F | 55 | 9,5 |
| SFX-4M 500 B | 230 | 50 | 750 | 3,28 | 16 | 1260 | 9250 | 66 | F | 55 | 10,5 |
| SFX-6M 500 B | 230 | 50/60 | 220/275 | 0,99/1,2 | 6,3 | 850 | 6240 | 58 | F | 55 | 10,5 |
| SFX4M 560 B | 230 | 50 | 1100 | 4,75 | 20 | 1280 | 11500 | 68 | F | 55 | 15 |
| SFX-6M 560 B | 230 | 50 | 450 | 2 | 10 | 875 | 8000 | 62 | F | 55 | 15 |
| SFX-6M 630 B | 230 | 50 | 800 | 3,45 | 16 | 850 | 12000 | 65 | F | 55 | 18 |
| Sound level was measured at a distance of 3 m in room condition. | |||||||||||
