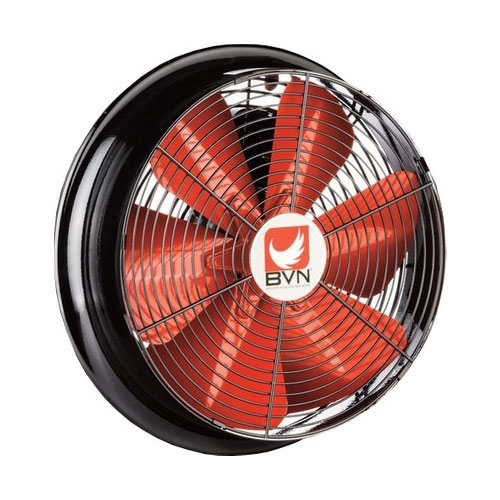

Industry Aspirators
It is used for ventilation of places with large volumes such as factories, warehouses, paint shops, shopping malls, workshops etc. The sound level is low. It is painted with environmentally friendly and friendly electrostatic epoxy powder paint to prevent corrosion.
Ürünü Paylaş
| Industry Aspirators | |||||||||||
| Model | Voltage V | Frequency Hz | Input Power W | Current A | Capacitor | Speed d/dak | Air m3/h | Sound dB(A) | Yal.Sın. İz.KI. | K.Sın. İP | Weight Kg |
| BSM 250-2K | 230 | 50/60 | 150/190 | 1/0,85 | 8 | 2900/3250 | 2200/2465 | 61 | B | 44 | 7,4 |
| BSM 250 | 230 | 50/60 | 65/75 | 0,4/0,3 | 3 | 1475/1770 | 1200 | 45 | B | 44 | 7,4 |
| BSM 300 | 230 | 50/60 | 90/110 | 0,45/0,50 | 3 | 1445/1700 | 2000 | 48 | B | 44 | 8 |
| BSM 350 | 230 | 50/60 | 160 | 1,05/0,85 | 6 | 1460/1750 | 3250/3895 | 53 | B | 44 | 8,2 |
| BSM 400 | 230 | 50/60 | 185 | 1,17/0,95 | 6 | 1425/1725 | 4500/5445 | 56 | B | 44 | 8,8 |
| BSM 450 | 230 | 50/60 | 200/190 | 1,1/0,9 | 6 | 1430/1730 | 5000/6050 | 60 | B | 44 | 10 |
| BSM 500 | 230 | 50/60 | 230 | 1,1 | 8 | 1440/1700 | 5500/6495 | 62 | B | 44 | 11 |
| BSM 550 | 230 | 50/60 | 220/320 | 1,07/1,64 | 10 | 1440/1700 | 6000/7080 | 63 | B | 44 | 14,6 |
| BSM 600 | 230 | 50/60 | 235/340 | 1,15/1,65 | 10 | 1400/1670 | 8000/9540 | 65 | B | 44 | 15,6 |
| BST 250-2K | 380 | 50/60 | 110/140 | 0,87/1,05 | _ | 2900/3250 | 2200/2465 | 61 | B | 44 | 7,4 |
| BST 250 | 380 | 50/60 | 50/60 | 0,25/0,35 | _ | 1475/1770 | 1200 | 45 | B | 44 | 7,4 |
| BST 300 | 380 | 50/60 | 70/85 | 0,30/0,36 | _ | 1445/1700 | 2000 | 48 | B | 44 | 8 |
| BST 350 | 380 | 50/60 | 120 | 0,45/0,55 | _ | 1460/1750 | 3250/3895 | 53 | B | 44 | 8,2 |
| BST 400 | 380 | 50/60 | 150 | 0,75/0,9 | _ | 1425/1725 | 4500/5445 | 56 | B | 44 | 8,8 |
| BST 450 | 380 | 50/60 | 170/200 | 1,1/0,9 | _ | 1430/1730 | 5000/6050 | 60 | B | 44 | 10 |
| BST 500 | 380 | 50/60 | 200 | 1,1 | _ | 1440/1700 | 5500/6495 | 62 | B | 44 | 11 |
| BST 550 | 380 | 50/60 | 220/320 | 1,07/1,64 | _ | 1440/1700 | 6000/7080 | 63 | B | 44 | 14,6 |
| BST 600 | 380 | 50/60 | 235/340 | 1,15/1,65 | _ | 1400/1670 | 8000/9540 | 65 | B | 44 | 15,6 |
| Sound level was measured at a distance of 3 m in room condition. | |||||||||||
