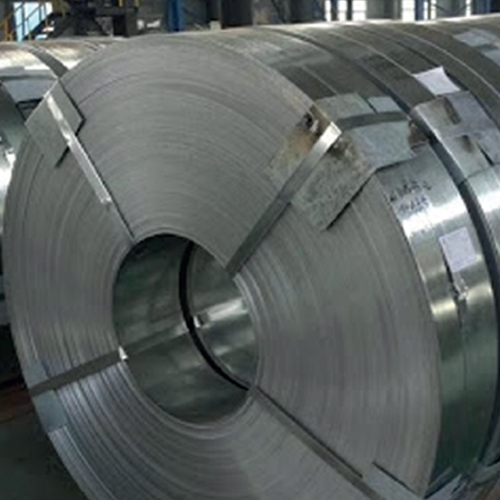

Galvanized Slitting Sheet 100A Coating (Zn)

Galvanized Coil Sheet is a "Zinc" coated metal to prevent corrosion of the metal. Galvanized is a type of sheet that is mounted on all wet and moist floors and has no alternative. Because galvanize in its structure is a sheet metal system that can cope with all the negativities and eliminate the pressure created by these negativities on the surface of the sheet.

Ürünü Paylaş

Galvanized sheet is obtained by subjecting the metal to hot dipping after cold rolling and coating both sides with zinc. The most important purpose of this coating process is to prevent corrosion of the material to be used in open areas and to prolong the life of the material.

Galvanized sheet material is in demand by sectors making exterior surfaces, especially the automotive industry. Galvanized sheet is preferred by many other sectors due to its technical features. Here are the technical features that increase the preferability of this material.

Corrosion Resistance:

Among the technical properties of galvanized sheet, perhaps the most important one is corrosion resistance. This material provides this resistance by protecting the metal inherent in zinc by establishing a barrier against corrosive elements.=

Formability:

Another important feature of galvanized sheets is that they can be easily formed. It is an ideal material for the production of parts that require extra deep drawability and bending.

Perfect Surface Appearance:

Galvanized sheets can be easily used in visible surface applications due to their surface quality.

Weldability:

Galvanized sheet technical specifications also include weldability. Thanks to these features, they can be welded with many welding processes.

Paintability:

Galvanized sheet products can be easily painted if they are pretreated correctly. These pretreatments are surface treatments and degreasing processes.

Other Features:

  • Galvanized sheet is very long-lasting.
  • Even when folded, no spillage occurs in the coating part.
  • It is extremely suitable against plastering and deep drawing.
  • It is easily soldered.
  • It is extremely easy to paint.
  • It is also highly resistant to fire.
  • Being economic is one of the most preferred reasons.
  • It is practical and protective against various external factors.

In Which Situations Should Galvanized Sheet Be Handled with Caution?

  • When using galvanized sheet, some special points should be considered. When the question of 'What is galvanized sheet?' is asked, it is necessary to pay attention to these points in the definition.
  • Galvanized sheets should definitely stay away from water during transportation and shipment.
  • It must be protected and maintained in closed areas. Water and moisture are extremely inconvenient for Galvanized sheets. If the products are going to be outside, they must be covered with waterproof covers.
  • Galvanized sheets should not get moisture from the ground just like they should not get water from the top. In this way, it can be placed on wedges or blades.
  • It should not be kept in places where the temperature difference is high.

The materials in stock must be handled and cleaned at least once every 2 months in terms of the lifetime of the materials.

Increases Resistance of Products

The most damaging factors for iron and iron products are moisture and wet ground. The lifetime of iron and iron products exposed to moisture is shortened and they lose their properties and resistance within a few years. This also means that iron and iron products lose their function. For this reason, the resistance of the products increases with the feature of the galvanized sheet, namely the galvanized sheet material, and the sheet can fully fulfill the function of the product.

Provides Longer Use

Galvanized sheet extends the life of the products thanks to its features. Because, as we mentioned before, the places where galvanized sheets are used are high-risk and exposed to negative effects such as humidity. Galvanized sheet is the only material that can withstand all these adversities and resist against bad conditions.
Galvanized sheet is an advantageous product that can be used in almost all areas that need to be preserved and protected against all external coatings, overflow sets, underground floors and against moisture.

Economic Price Range

Galvanized sheet material has features such as extending the life of products and increasing their resistance. However, its advantages are not limited to these. Because these materials also have an extremely economical price range. Considering its contribution and function, it will be understood how economical the prices of galvanized sheet metal are. Once installed, these materials can be used for at least 50 years.

Other Advantages

  • It provides easy storage as it occupies less space.
  • Since it provides the opportunity to be cut in various lengths, the amount of wastage is low.
  • It provides a very long flat sheet or formed sheet.
  • It provides convenience in making different profiles.
  • It saves time and labor in pressing processes that require continuous work.
  • It provides slitting widths suitable for usage purposes.
  • It is long-lasting.
  • Control is provided at every stage of the production processes.
  • If folded, there is no spillage in the zinc coating.
  • As it can be painted easily, it also keeps soldering easily.
  • It has high resistance against fire and external factors.
  • It is easy to store.
  • It provides convenience in making different profiles.

Galvanized sheet is used as roofing for the building construction sector by giving the appropriate form, and as a sandwich panel on the inner and outer side surfaces of the buildings. In addition, it is used in the manufacture of domestic appliances due to its long life. In addition, this type of sheet can be used in the automotive industry in the production of internal and external surface parts.

Galvanized sheet products can be offered to the market and customers optionally as:

  • Coil
  • Standard
  • In desired dimensions
  • Ridge, trapezoidal, roller blind and grooved or
  • Wall profiles.

Areas of Usage :

  • Automotive Industry
  • Domestic Appliance Industry
  • Insulation and Coating Processes
  • Ventilation and Air Conditioning Plants
  • Thermosiphon, Stove and Pipe Production
  • Production of Water and Fuel Tanks
  • Pipe and Profile Production
  • Cable Duct and Lighting Fixtures
  • Cable Industry
  • Hardware and Packaging Industry
  • Prefabricated Building Production
  • Barrack Construction, Silo and Warehouse Construction
General Usage Area and Its Main Features Standard Equivalent ERDEMİR  Quality No
Standard Quality
 Low carbon "zinc coated" galvanized steels suitable for cold forming DİN EN 10346:200 DX51 D+Z 1311
DİN EN 10346:2009 DX52D+Z 1312
DİN EN 10346:2009 DX53D+Z 1313
DİN EN 10346:2009  DX53D+Z 1303
DİN EN 10346:2009 DX54D+Z 1314
DİN EN 10346:2009 DX56D+Z 1315
WSD-M1 A333 A2 DC05 311
11-04-013 XE 312
WSS-M1 A365 A13 320
WSS-M1 A365 A14 321
WSD-M1 A333 A3 DC06 323
11-04-013 XES 324
B53 3106 XSG 325
52806/9.52873 FEP04-ZNT/F/2S 326
52806/9.52873 FEP05-ZNT/F/2S 327
52806/9.52873 FEP04/FEP05-ZNT/F/2S 328
 Low carbon "zinc-iron alloy coated" galvanized steels suitable for cold forming DİN EN 10346:2009 DX51 D+ZF 1411
DİN EN 10346:2009 DX52D+ZF 1412
DİN EN 10346:2009  DX53D+ZF 1413
DİN EN 10346:2009  DX54D+ZF 1414
DİN EN 10346:2009  DX56D+ZF 1415
TSG31 09G  SCGA270C 410
TSG31 09G  SCGA270C 411
TSG31 09G  SCGA270D 430
TSG3109G SCGA270D 431
HES C071  JAC270F 432
 Zinc coated "galvanized" kiln hardened steels DİN EN 10346:2009 HX180BD+Z 1118
DİN EN 10346:2009 HX220BD+Z 1122
WSS-M1 A341 A7 1124
DİN EN 10346:2009  HX260BD+Z 1126
DİN EN 10346:2009  HX300BD+Z 1130
52814/9.52873  FEE 220 BH-ZNT/F/2S 380
  WSS-M1 A367 A22 381
  WSS-M1 A367 A23 382
 Zinc-iron alloy coated "galvanized" kiln hardened steels DİN EN 10346:2009  HX180BD+ZF 1218
DİN EN 10346:2009  HX220BD+ZF 1222
DİN EN 10346:2009  HX260BD+ZF 1226
DİN EN 10346:2009  HX300BD+ZF 1230
TSG31 09G  SCGA 340BH 482
 Zinc coated “galvanized” IF steel DİN EN 10346:2009 HX180YD+Z 1518
DİN EN 10346:2009 HX220YD+Z 1522
  Zinc coated and galvanized steels with continuous hot dip method suitable for cold forming process with high yield strength 11-04-002/L XE280P 388
 "Galvanized" double phase steels with high yield strength and suitable for cold forming process  DİN EN 10346:2009   HCT600X+Z  1660
52815/9.52873  FE 600 DP F ZNT/F/2S  390
WSS-M1A348  A1 391
 Zinc coated (galvanized) steels with continuous hot dip method suitable for cold forming process with low alloy DİN EN 10346:2009 HX260LAD+Z 1626
DİN EN 10346:2009  HX300LAD+Z 1630
DİN EN 10346:2009  HX340LAD+Z 1634
DİN EN 10346:2009  HX380LAD+Z 1638
DİN EN 10346:2009  HX420LAD+Z 1642
11-04-002 XE280D 331
F-52811/9.52873 FEE 270 F - ZNT/F/2S 360
11-04-002 XE 320D 366
WSB-M1 A215-F1 Gr. 300 367
F-52811/9.52873 FEE 340 F - ZNT/F/2S 368
11-04-002 XE-360D 372
  Zinc coated “galvanized” structural steel DİN EN 10346:2009  S220GD+Z 1322
DİN EN 10346:2009 S250GD+Z 1325
DİN EN 10346:2009 S280GD+Z 1328
DİN EN 10346:2009  S320GD+Z 1332
DİN EN 10346:2009 S350GD+Z 1335
WSB-M1 A215-F1 Gr. 250 355
  Zinc-iron alloy coated "galvanized" structural steels DİN EN 10346:2009 S220GD+ZF 1422
DİN EN 10346:2009  S250GD+ZF 1425
DİN EN 10346:2009  S280GD+ZF 1428
DİN EN 10346:2009  S320GD+ZF 1432
DİN EN 10346:2009  S350GD+ZF 1435
Galvanized Slitting Sheet 100A Coating (Zn)
GCR DX51D + Z 100A 0,50*137
GCR DX51D + Z 100A 0,60*137
GCR DX51D + Z 100A 0,70*137
GCR DX51D + Z 100A 0,80*137
GCR DX51D + Z 100A 0,90*137
GCR DX51D + Z 100A 1,00*137
GCR DX51D + Z 100A 1,20*137
Continuously hot-dip coated steel flat products for cold forming
(TS EN 10346)
(Nr) (Steel Quality) (Steel Number) (Coating Type) (Chemical Compostion) ( % ) Max (Yield Strength) ( N/mm2) (Tensile Strength) ( N/mm2 ) (Elongation) ( % ) Min (Plastic Strain Ratio) ( r90 ) Min (Strain Hardening Exponent) ( n90 ) Min
C Si Mn P S Ti
1 DX51D 1.0917 +Z 0.18 0.50 1.20 0.12 0.045 0.30 * 270-500 22 - -
+AZ
2 DX52D 1.0918 +Z 0.12 0.50 0.60 0.10 0.05 0.30 140-300 270-420 26 - -
+AZ
3 DX53D 1.0951 +Z 140-260 270-380 30 - -
+AZ
4 DX54D 1.0952 +Z 120-220 260-350 36 1.6 0,18
+AZ - -

NotE: Apply EN 10346 standard for details and explanations.

TS EN 10346 BY STANDARD;
DX51D Bending and profiling quality
DX52D  Drawing Quality
DX53D Deep Drawing Quality
DX54D Special Deep Drawing Quality
DX56D  Extra Deep Drawing Quality
DX56D Extra Deep Drawing Quality





Continuously hot-dip coated steel flat products for cold forming
(TS EN 10346)
(Nr) (Steel Quality) (Steel Number)
(Coating Type)
(Chemical Compostion) ( % ) Max Yield Strength ( N/mm2 )  Tensile Strength ( N/mm2 ) Elongation ( % ) Min
C Si Mn P S
1 S220GD 1.0241 +Z 0.20 0.60 1.70 0.10 0.045 Min 220 Min 300 20
+AZ
2 S250GD 1.0242 +Z Min 250 Min 330 19
+AZ
3 S280GD 1.0244 +Z Min 280 Min 280 18
+AZ
4 S320GD 1.0250 +Z Min 320 Min 360 17
+AZ
5 S350GD 1.0529 +Z Min350 Min 390 16
+AZ
6 S390GD 1.0238 +Z Min 390 Min 460 16
+AZ
7 S420GD 1.0239 +Z Min 420 Min 480 15
+AZ
8 S450GD 1.0233 +Z Min 450 Min 510 14
+AZ
9 S550GD 1.0531 +Z Min 550 Min 560 -
+AZ

Note: Apply EN 10346 standard for details and explanations.
